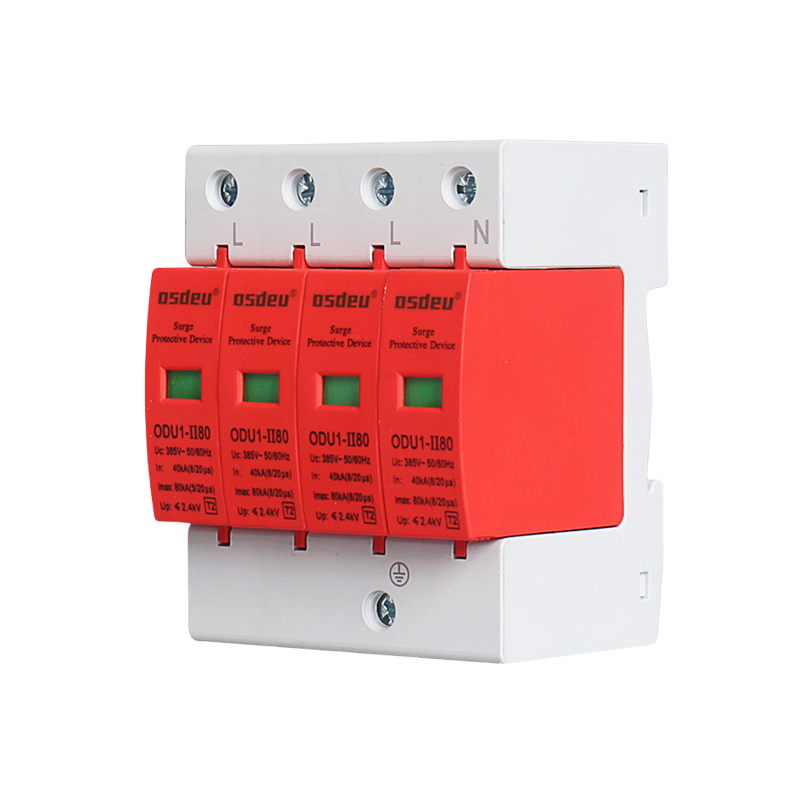

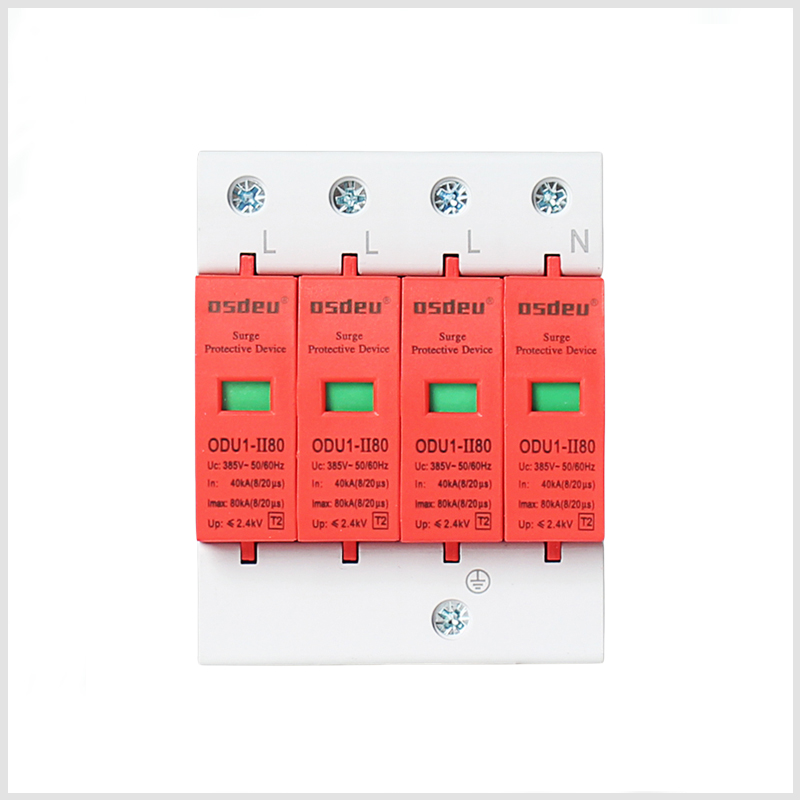

Type 2 AC SPD, Imax 80kA, Class II Surge Protective Device

ODU1-80 is type 2 ac spd, Imax=80kA, the product also supports remote signaling, This Series innovative tripping and breaking technology. Max continuous operating ac voltage reaches 440v, Maximum discharge current reaches 80kA.

● Standard: IEC/EN 61643-11
● Surge Rating: Imax=80kA (8/20 µs)
● IEC/EN Category: Class II / Type 2
● Max. continuous operating voltage: 150, 275, 320, 385, 440V
● Housing: Pluggable Design

Send Inquiry Live Chat

Product Details
Packing & Delivery
FAQs

Porduct Overview

ODU1-80 AC Surge Protective Device is a Class II device designed to protect against transient overvoltage from fast switching operations or indirect lightning strikes. It can discharge induced voltage surges (8/20 μs) and is suitable for use as the second level of protection in supply distribution panels with Type 1 protectors, or as the first level of protection for applications not directly exposed to lightning strikes and without an external lightning protection system.

Technical parameters

Technical Data

Table 1

No.of poles	1P	2P	3P	4P	1P+NPE	3P+NPE
Network systems	TN-S, TN-C, TT(only L-N)	TN-S	TN-C	TN-S	TT, TN-S
Mode of protection	L-PE, N-PE(onlyTN-S), L-PEN, L-N	L-PE, N-PE	L-PEN	L-PE, N-PE	L-N, N-PE
Protective elements	High Energy MOV				High Energy MOV and GDT

Table 2

Maximum continuous operating voltage (L-N)	Uc	150V	275V	320V	385V	440V
Maximum continuous operating voltage (N-PE)	Uc	255V
Norminal discharge current (8/20μs) (L-N)/(N-PE)	In	20kA
Maximum discharge current (8/20μs) (L-N)/(N-PE)	Imax	80kA
Voltage protection level (L-N)/(N-PE)	Up	0.8kV/1.5kV	1.3kV/1.5kV	1.5kV/1.5kV	1.8kV/1.5kV	2.0kV/1.5kV
Voltage protection level 5kA	Up	0.6kV	1.0kV	1.2kV	1.4kV	1.6kV
Response time (L-N)/(N-PE)	tA	≤25ns/≤100ns
Operating temperature range	Tu	-40℃ to +80℃
Max. Back-up fuse		125 A gL/gG
Operating state/fault indication		Green/Red(L-N),Yellow(N-PE)
Cross-section area (Min.)/(Max.)		4mm²/35mm²
Mounting		35 mm DIN Rail, EN 60715
Enclosure material		Thermal Plastic UL94-V0
Degree of protection		IP20 (built-in)

Dimensions

Basic circuit diagram

Installation Size

Product selection form
