The ODL26-100B Type B RCCB represents the next generation of residual current protection, engineered to address the complex safety challenges of today’s electrical systems. Featuring an industry-leading 100A rating and comprehensive detection capabilities for all types of leakage currents, this advanced device provides optimal protection for mission-critical applications including large-scale industrial facilities, grid-connected renewable energy installations, and high-capacity EV charging networks. By delivering superior electrical fault detection and prevention, the ODL26-100B safeguards both human operators and sensitive equipment against potentially dangerous leakage currents in demanding operational environments.

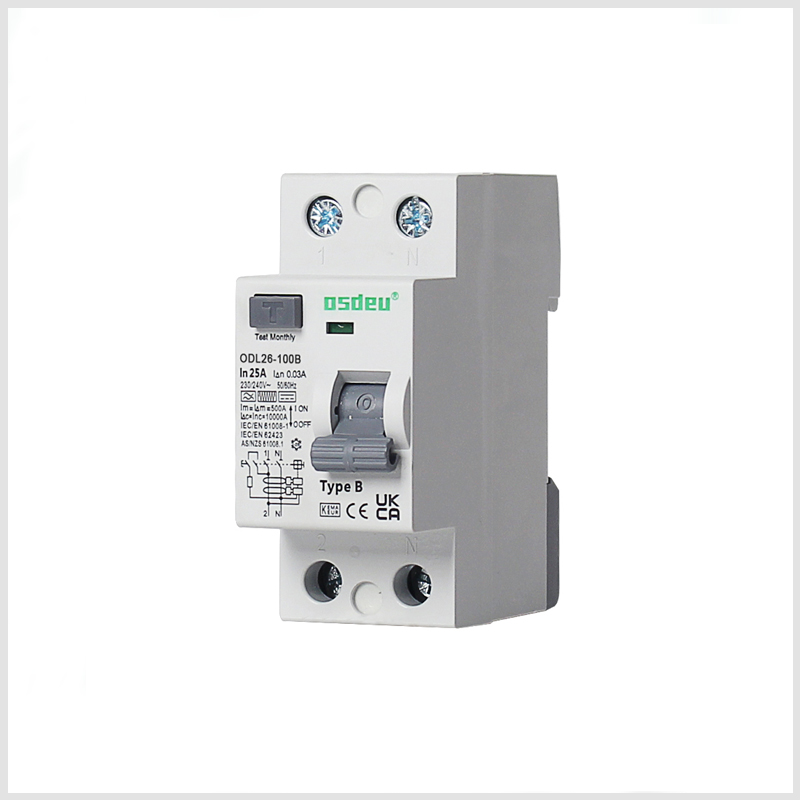

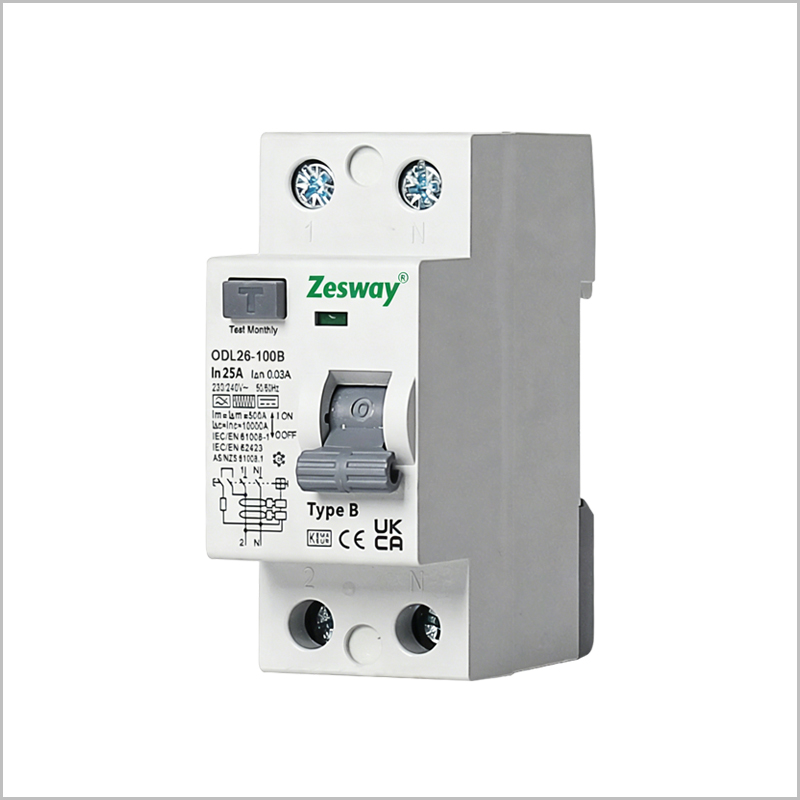

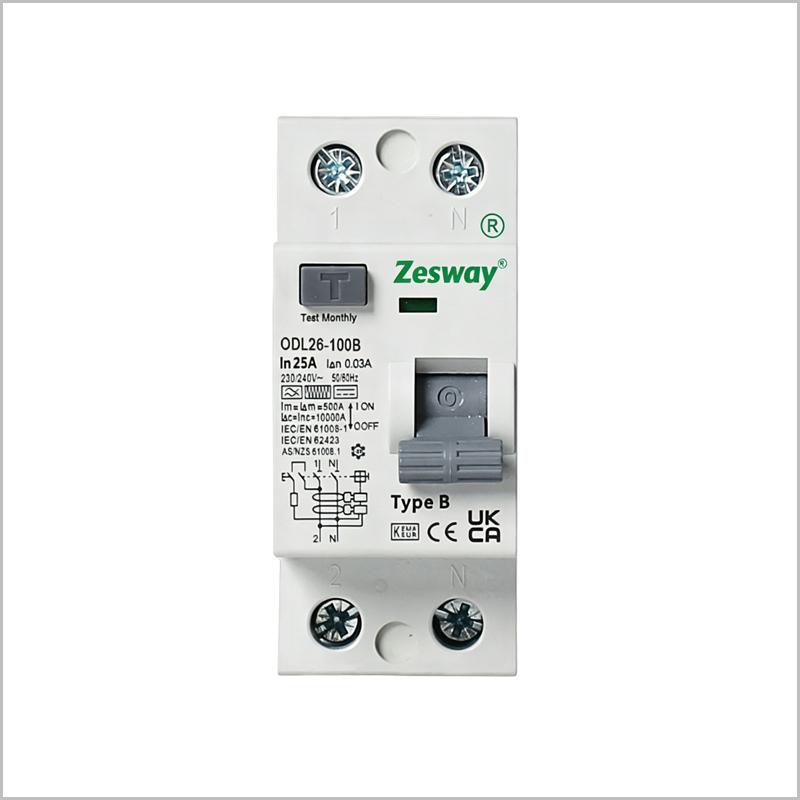

ODL26-100B Type B RCCB – Advanced Leakage Protection for Modern Power Systems
Key Benefits:
✔ Full-Spectrum Protection – Detects all leakage types (AC/DC up to 1000Hz)
✔ 100A High-Capacity – Handles demanding industrial loads
✔ Precision Detection – Responds to minute leakage currents
✔ Industrial Durability – Built for harsh environments
✔ Global Compliance – Meets international Type B standards
Technical Highlights:
- Frequency Range: 0-1000Hz coverage
- Mounting: Standard 35mm DIN rail
- Visual Indicators: Clear fault status display
- Materials: Heavy-duty construction
Ideal Applications:
- EV Fast Charging Stations
- Solar/Wind Farm Installations
- Factory Automation Systems
- Critical Data Centers
- Medical Power Networks
Why Professionals Choose ODL26-100B:
✓ Future-ready protection for modern electrical challenges
✓ Simplified maintenance with smart indicators
✓ Proven reliability in mission-critical systems
Keywords: Type B RCCB 100A, EV charger protection, industrial leakage breaker, 1000Hz RCD, DIN rail circuit breaker
Trusted Solution: ZHISHUN Electric’s ODL26-100B delivers unmatched electrical safety for high-power systems, protecting both equipment and personnel through advanced leakage current detection technology.
Technical parameters
| Category | Parameter | Specification |
|---|---|---|
| Standard Certification | Compliance Standards | IEC 61008-1, IEC 62423 |
| Protection Type | Ground Fault Protection | Electromagnetic Trip |
| Residual Current Type | Type B | Detects: AC, pulsating/smooth DC (≤1kHz) |
| Configuration Options | Pole Configurations | 2P(1P+N), 4P(3P+N) – N Pole on left |
| Current Ratings | 2P(1P+N) | 16,25,32,40,63A (80,100A as 3 modules) |
| 4P(3P+N) | 16,25,32,40,63,80,100A | |
| Voltage Ratings | 2P(1P+N) | 110/230/240V |
| 4P(3P+N) | 240/400/415V | |
| Insulation | Insulation Voltage (Ui) | 500V |
| Frequency | Rated Frequency | 50/60Hz |
| Sensitivity | Residual Operation Current (IΔn) | 30,100,300mA |
| Breaking Capacity | Residual Making/Breaking (IΔm) | 500A (In≤50A), 10In (In>50A) |
| Short-Circuit Current (Inc=IΔc) | 10,000A | |
| SCPD Fuse Rating | 10,000A | |
| Response Time | Residual Current Off-Time | ≤0.1s |
| Voltage Withstand | Impulse Withstand (1.5/50μs) | 4kV |
| Dielectric Test (1min) | 2.5kV | |
| Durability | Electrical Life | 2,000 cycles |
| Mechanical Life | 4,000 cycles | |
| Indicators | Contact Position | Green=OFF, Red=ON |
| Ground Fault | White=Normal, Red=Leakage | |
| Protection | Protection Degree | IP20 |
| Environment | Operating Temperature | -25°C to +40°C |
| Humidity | Max 95% | |
| Terminals | Connection Type | Cable/Pin-type/Fork-type busbar |
| Max Cable Size | 35mm² | |
| Tightening Torque | 2.5N·m | |
| Installation | Mounting | 35mm DIN Rail |
| Wiring Direction | Bi-directional |
